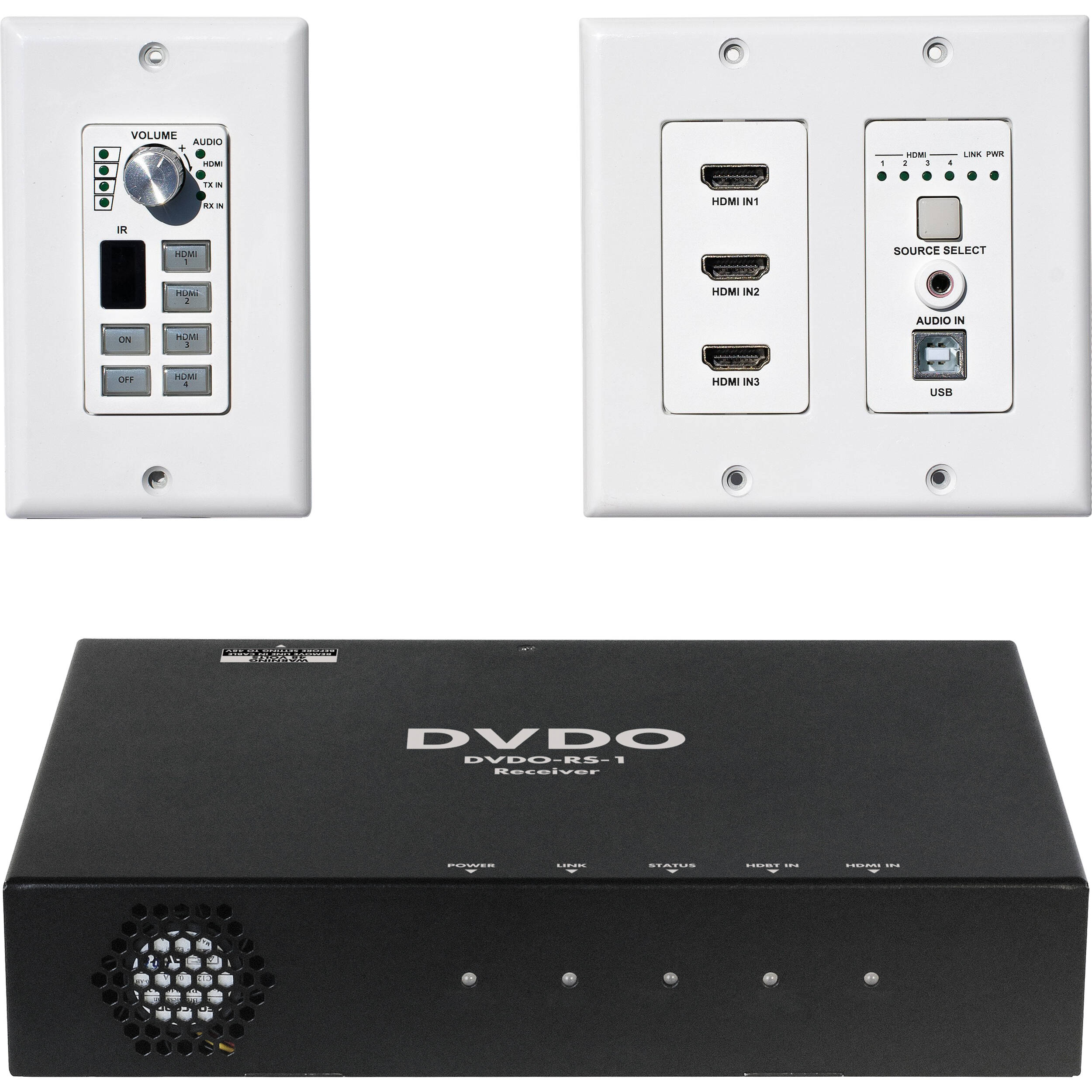

Connect and control HDMI devices in a classroom, conference room, or office setting with the DVDO Advanced 4K AV Room System thanks to its inclusion of a wall-plate transmitter, receiver, and control panel. The system can deliver power, control, audio, and up to 4K HDMI video at 60 Hz between the transmitter and receiver over a single Cat 6a cable HDBaseT connection up to 330'. Three HDMI inputs and one audio input on the wall transmitter distributes audio and video to the receiver, which has one HDMI input for connection to a local computer.

The control panel communicates via IR and LAN connection and can adjust volume and remotely switch the sources with the integrated knob and buttons. RS-232 ports on the receiver and built-in Web UI software can control the HDMI sources and de-embed analog audio to two speaker outputs for amplification. Monitoring software is included with the system and both the transmitter and receiver have micro USB ports for firmware updates. The system bundle is equipped with all the necessary installation screws for mounting the transmitter and control panel to your classroom or office wall. Power for the system is provided from the receiver's DC connection and included 24V power adapter.
