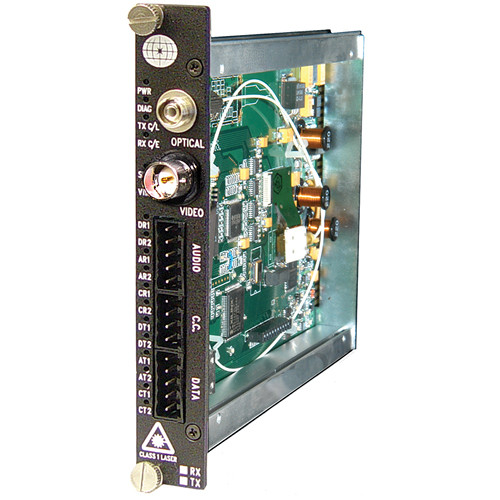

The SR-1W2A-3 Fiber Transmission System (Receiver) from Meridian Technologies incorporates an all-digital encoding technology that transmits one real-time, simplex 10-bit video channel and two, 24-bit audio channels in one direction over one optical fiber. This model uses singlemode fiber. It is well suited for use in intelligent transportation systems, security & surveillance work, access control, among many other applications and settings.

NTSC, PAL and SECAM video formats are seamlessly supported. It uses 3-pin terminal blocks for audio channel interfaces. The SC series is also compatible with Meridian's SpectraSmart Network management and diagnostic PC-based system.

The DigiSlim product family is available as rack mount cards and modules that can be installed in any of Meridian's desk chassis or in 19" racking frames. This system can be configured in either star (module to rack) or trunking (rack to rack) configurations. These systems can be transformed in to a standalone module by using SR-500/S (standard configuration) or SR-1000/S frames.
