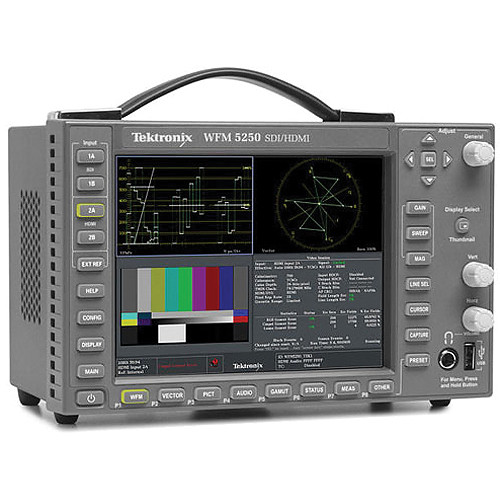

The WFM5250 Waveform Monitor offers uncompromised monitoring quality with sharp CRT-like traces and SDI (SD/HD) and HDMI monitoring. Its other features include Gamut displays, picture thumbnail, display freeze, and an error log for 10,000 events for efficient content compliance verification. This portable video waveform monitor weighs less than 6.6 lb (3 kg) and provides a suitable solution for basic video monitoring needs in a convenient 3RU half-rack short depth form factor, suitable for space-constrained environments.

The WFM5250 Compact Video Waveform Monitor features an integrated high-brightness, low-power consumption LED backlit display in a convenient 3RU, half-rack, short-depth form factor, suitable for space-constrained environments. This versatile instrument can accept power from a 12VDC source, a battery, or a 100 to 240VAC converter.

Its SDI input provides multi-format support for HD-SDI (SMPTE 292), SD-SDI (ITU-R BT.601), and Dual Link (SMPTE 372) signal formats. The instrument provides automatic format detection for 3G/HD/SD-SDI on each input. The WFM5250 unit has HDMI inputs with HDCP support that can be connected to encrypted (HDCP) consumer devices for monitoring the video and audio signals.

This instrument provides the reliability of the Tektronix waveform monitors family in a portable, basic monitoring product.
