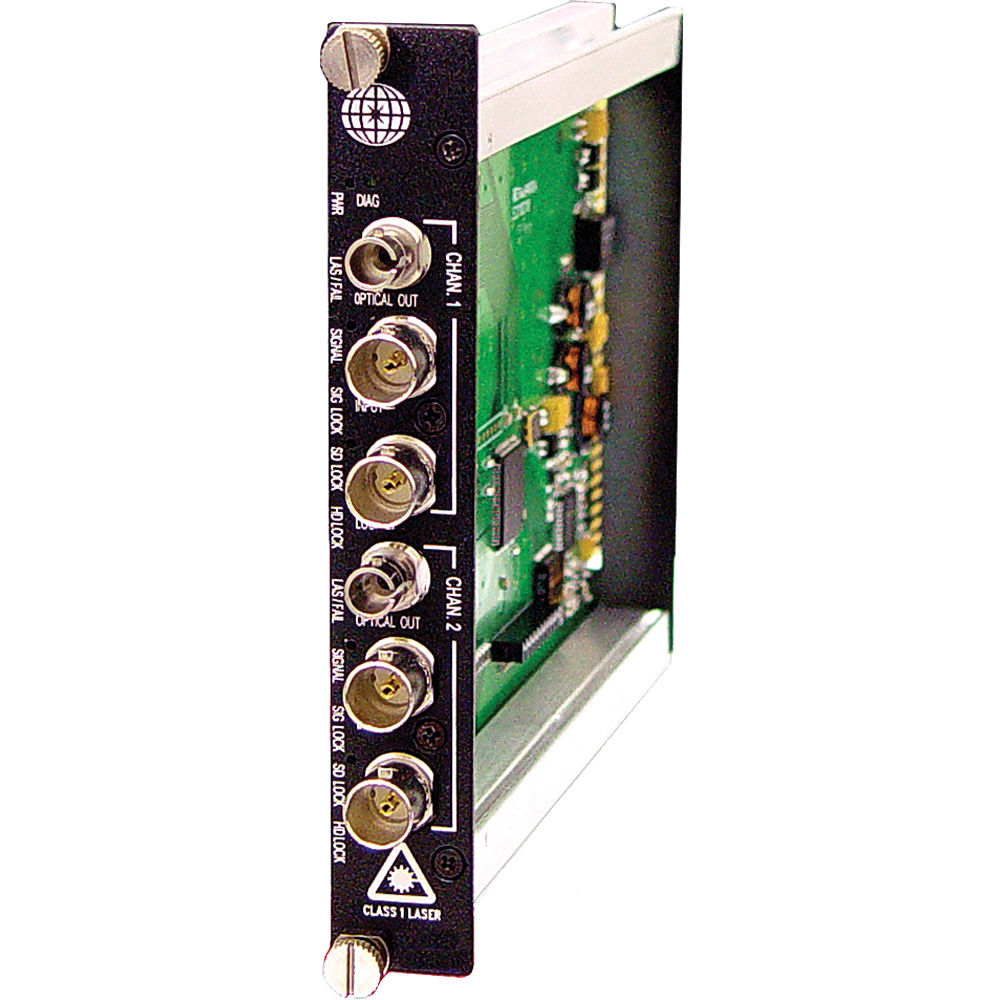

The SX-1HD-1ST 1-Channel Bi-Directional Video Transmitter from Meridian Technologies features a built-in re-clocker and transmits multi-rate SDI / HDSDI videos. This serial digital video transceiver provides broadcast-quality transmission of the industry-standard range of digital video data rates. It supports one, bi-directional channel of SDI / HDSDI video over one fiber in each direction. This rack-mountable card transmits and receives real-time video. The built-in re-clocker supports 3R (Retiming, Reshaping, Regenerate) functions and dual buffered outputs. One buffered output can be set as a time base (clock).

This transmitter supports buffered loop-through, which ensures maximum performance over long distances. No video compression is utilized. It supports 1-channel of SMPTE bidirectional 292M, 310M, 259M, and 344M compliant digital video data rates over one multi-mode or single-mode fiber for each channel. No user adjustments are needed, thus ensuring fast deployment and setup with broadcast quality results. It can transmit and receive on both multi-mode and single-mode fibers. This enables you to convert the type of fiber in mid span.
