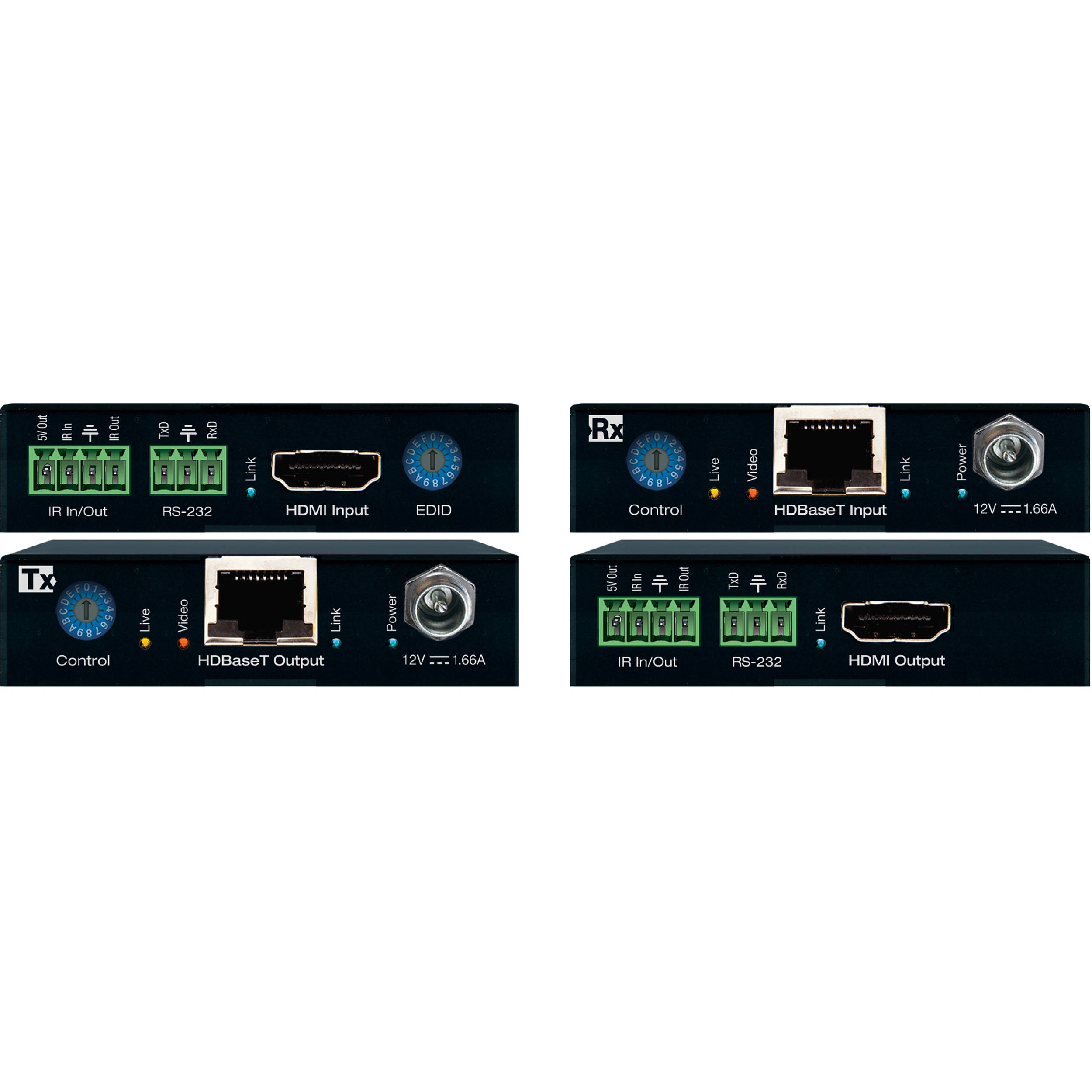

Transmit 4K HDMI video over HDBaseT up to 230' using this KD-X444S 4K/18G HDMI/HDBaseT Extender Kit from Key Digital. The KD-X444S includes an HDMI transmitter and receiver pair featuring a low-profile, compact design, which can fit anywhere in your setup. Transmit 18 Gb/s video up to 12-bit 4:4:4 UHD/4Kp30 and 8-bit 4:4:4 UHD/4Kp60 up to 130' away and 1080p HD video up to 230' away over Cat 6 or 5e HDBaseT cable.

The KD-X444S features hot plug detection, HDCP 2.2 authentication, CEC pass-through, TMDS re-clocking with signal regeneration, and there are 15 selectable EDID handshakes. IR pass-through is supported using the included Rx and Tx IR cables that send remote IR signaling back and forth between your remote control and the equipment attached to the receiver.

The kit also supports the HDR10 color profile, and audio profiles include lossless, compressed Dolby TrueHD, Digital Plus, DTS-HD Master Audio, and Atmos. Viewing the unit's status and various control functions is performed using the 3-pin Euroblock RS-232 input. There are also LEDs on the front of each unit to indicate link and power activity. Only one power supply is required as the units support PoH (Power over HDBaseT), and one 12V KD-PS20W12VQ power supply is included. Also included are four brackets for mounting the units and Euroblock connectors.
