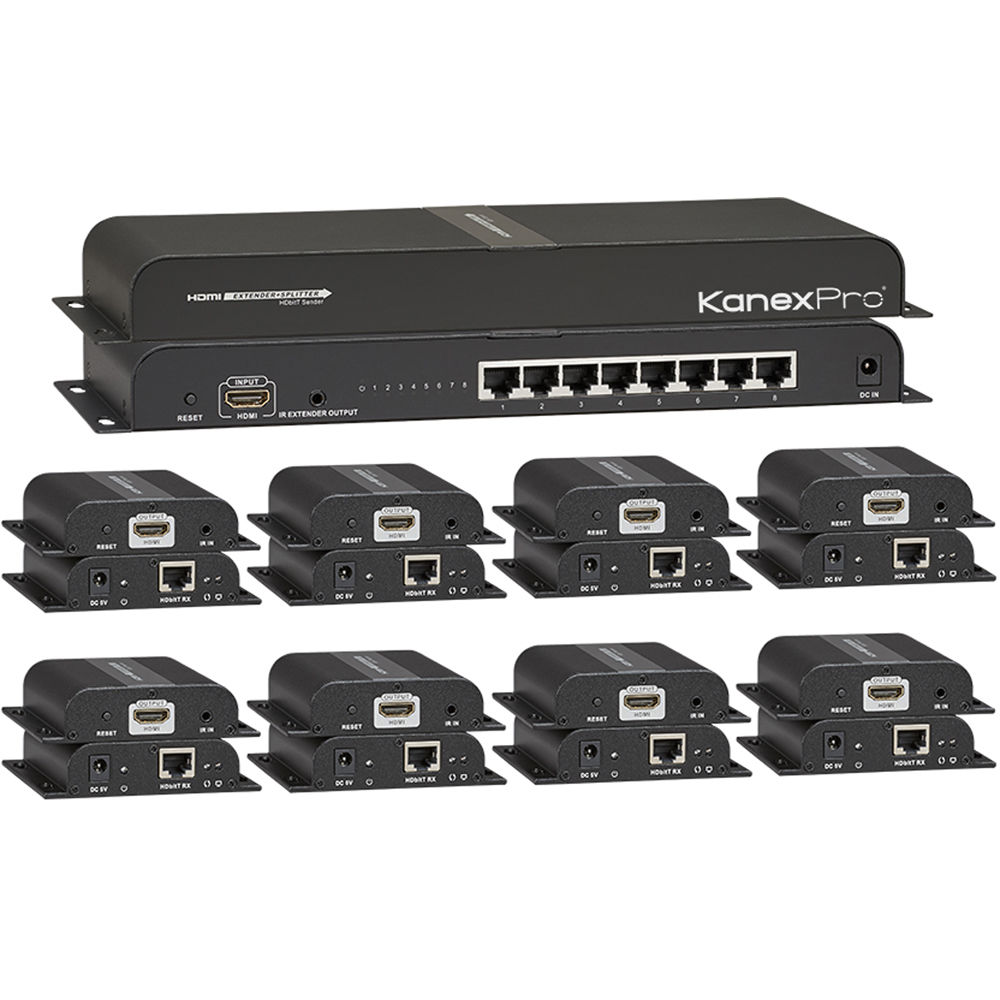

The KanexPro 1x8 Distribution Amplifier (SP-HDPOC1X8) is a 18Gbps HDMI 1x8 Splitter that can distribute a single HDMI source signal to any 8 display devices. Support video resolution up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 CAT outputs. It can extend the signal transmission distance up to 35 meters at the resolution of 4K2K@ 60Hz, or 50 meters at 4K2K@30Hz, or 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports one-way IR control signal pass-through, audio extract function and advanced EDID management.

HDCP 2.2 authentication is present always on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

Perfect for house of worship centers, retail stores and residential /smart home theater applications where one HDMI device can be distributed to eight displays over a single network cable up to 164ft. without losing signal integrity.

• Distribute & Extend HDMI over Single CAT5e/6 to eight HD displays
• Includes 8-independent receivers
• Supports transmission distance up to 192 ft. (60m)
• Supports UHD 4K ( 4K x 2K @ 60Hz)
• Control via IR (kits included)
• Supports 5.1, 7.1 digital audio and uncompressed LPCM
• HDCP 2.2 & EDID support for multiple displays
• Simple set up with zero configuration
• Low Power consumption - No Power supplied Needed for the RXs
• Power over Cable
• Compact design for flexible installations
• Support digital and analog audio de-embedded outputs
