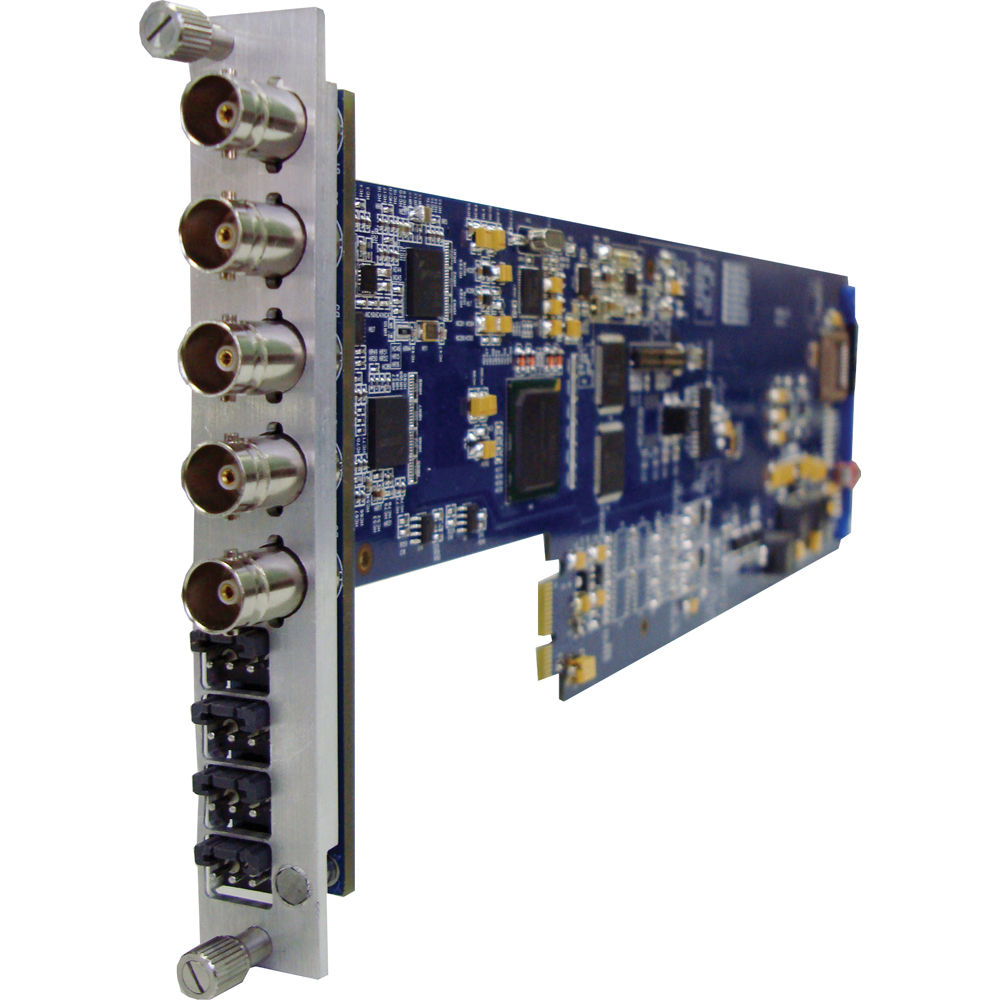

The XIO 9030HDDEM-4AUD-3U 4-Channel Balanced Audio De-Embedder from Gra-Vue is a modular board for installation in XIO series rackmount frames. It splits off two user selectable stereo pairs from the SDI stream and outputs those via balanced terminal block connectors. In addition to being able to select the channels, it is also possible to select the de-embedding mode. For example, having the outputs follow the input channels, crossing the output channels, mixing output, and more. These setting are changed using DIP switches on the board.

The board features two mirrored SDI loop outputs so that video can be delivered to two downstream destinations without requiring a separate distribution amplifier. It will pass both SD and HD resolution signals, and supports bandwidths up to 1.5 Gb/s (HD-SDI).

Note: This version is configured for the 3RU frame. There is another model available if you use the 1RU frame.
