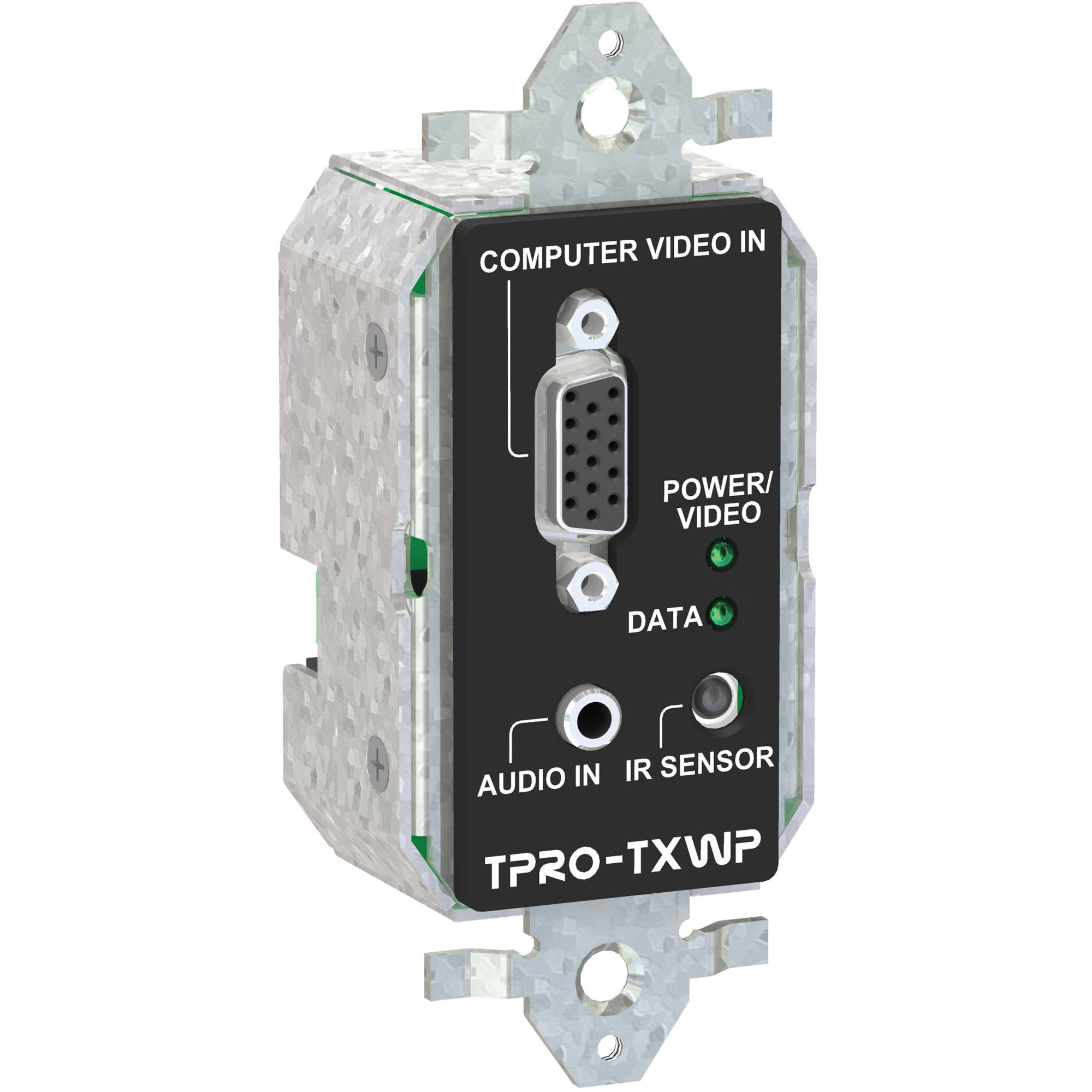

The TPRO-TXWP-BLK 1-Gang Wall Plate Transmitter (Black) forms part of FSR's TwisterPro UTP Transmitter/Receiver system. Combined with an optional TPRO-RX receiver, this transmitter allows for long-distance transmission of RGB video, stereo audio, RS-232 data and IR control data. Offering the highest level of signal integrity and error-free transmission, this system uses affordable, easily installed Cat-5/5E/6 cable--a major advantage over bulkier, traditional video and data cables.

Through cable runs of up to 1000 feet, the TPRO-TXWP-BLK uses RJ-45 connections to transmit not only all RS-232 and IR data, but video resolutions up to 1920 x 1080 and 24-bit stereo audio @48kHZ. A single VGA port handles RGB, component, composite or S-Video signals, while RS-232/IR data is carried via 9-pin DSub (optional). Full expandability is possible using separate 1-in/8-out hubs, which can be cascaded to allow up to 512 outputs.

The TPRO-TXWP-BLK is ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing reliable video, audio and data transmission with zero electrical interference. Its single-gang wall plate design also comes with matching Decora trim rings for standalone use.
