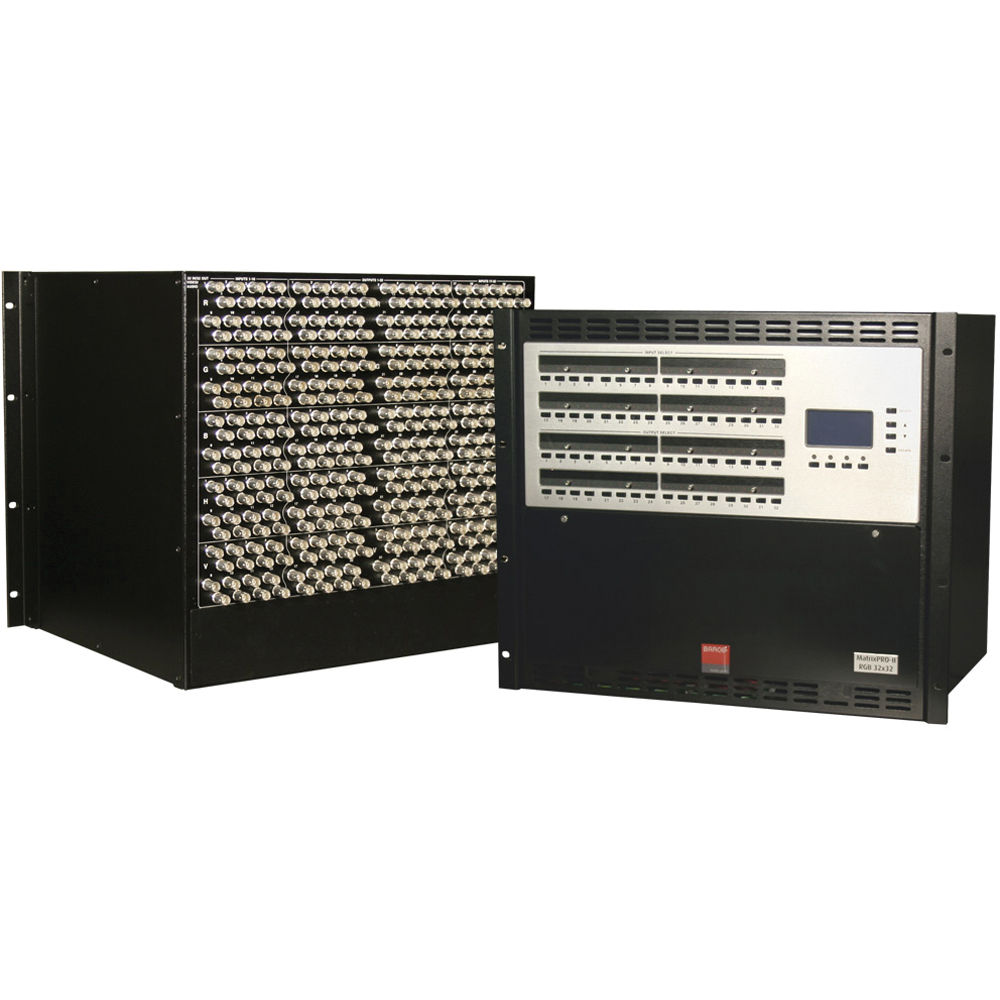

The Barco MatrixPRO-II 32x32 Switcher with 3G SDI combines a high 600MHz bandwidth with a flat +/-1.0dB to 300MHz frequency to deliver image switching and signal distribution without any artifacts.

A genlock input synchronizes all switching with the house sync. A user-selectable RGB delay mode locks down-stream equipment to a new signal before anything is visible on the screen. And presets are available to be stored and allow easy system reconfiguration. I/O grouping and split-mode switching features divide the matrix into smaller sub-switchers and let each color channel switch independently.

Control can be by front panel buttons, by RS232, or via Ethernet connections. The switcher also fully integrates with Barco's Encore and ScreenPRO-II presentation systems and can be controlled through them.
