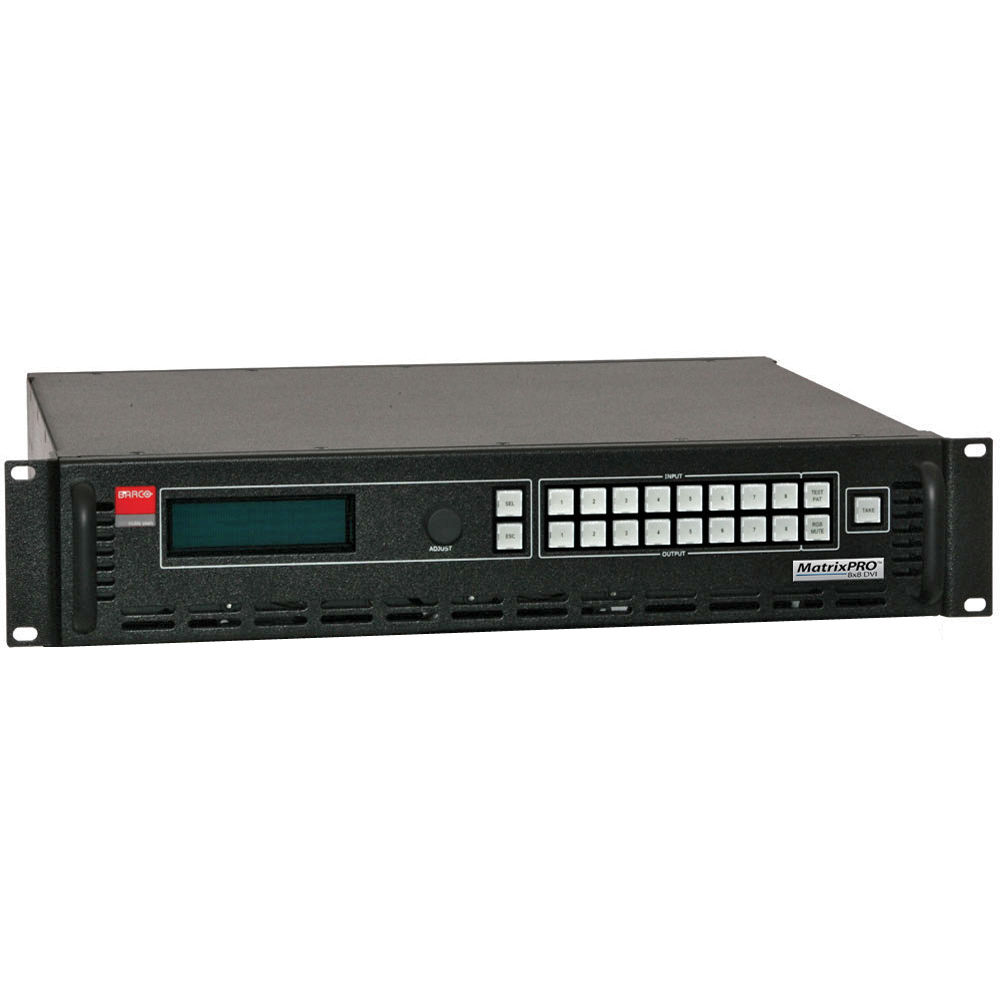

The MatrixPRO 8x8 DVI Video Matrix Router from Barco is a router designed to manage DVI signals. The unit will accept DVI inputs up to 2048 x 1080. It features (8) inputs and (8) outputs. Each input is re-clocked as it passes through the router, which helps to maintain DVI signal strength. Each output channel can also display an internally generated test pattern and test patterns are available with or without any valid input signals.

The unit can be controlled via its front-panel interface or via Ethernet IP or RS-232 connectivity. A number of separately available control and remote-control panels are also available. The front-panel menu includes a VFD display and a knob to facilitate navigation and management. This switcher is housed in a rackmount chassis.
