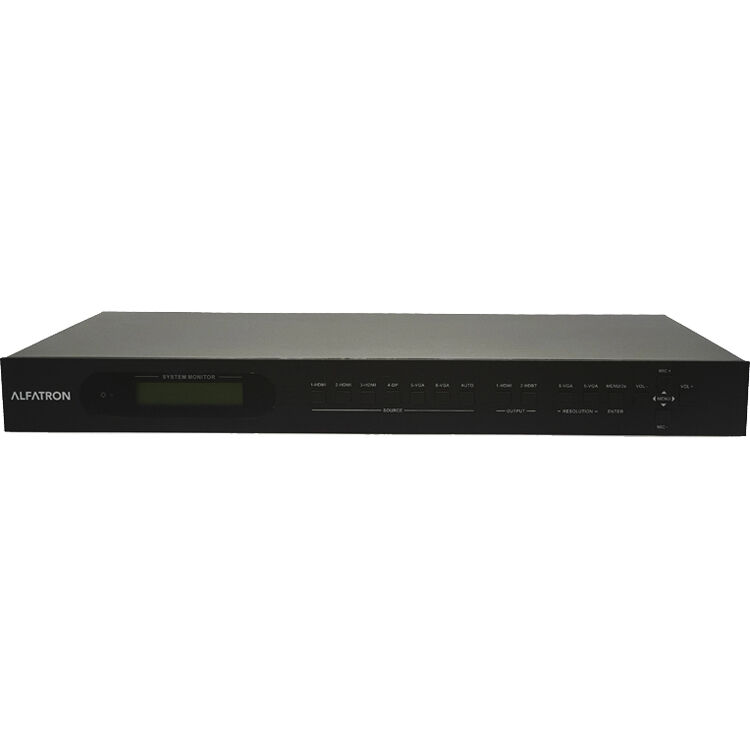

The SM26T 6x2 4K Presentation Switcher Kit from Alfatron is a professional 6x2 4K presentation system that includes a switcher and an HDBaseT receiver. Select and switch among three HDMI, one DisplayPort, and two VGA inputs, sending video signals to an HDMI and an HDBaseT output. Supporting resolutions up to 4K30 with 4:4:4 color sampling, the SM26T HDBaseT output supports PoH and can send video to the HDBaseT receiver up to 230' in 1080p and up to 131' in 4K.

The built-in EDID settings include an EDID pass-through option, providing you with the highest-quality digital video signal routed directly to a display. A video signal will automatically scale up to 1920 x 1200 when a VGA signal is connected. The HDMI and DisplayPort inputs support stereo and multi-channel audio, and analog audio may be paired with the VGA input and embedded into the digital video stream outputs.

Multiple methods of control, including IR, RS-232, GUI, and front-panel tactile selection are supported. Auto settings will allow the unit to automatically switch to the latest source added to the switcher and switch to the first detected input when an active source is removed.
