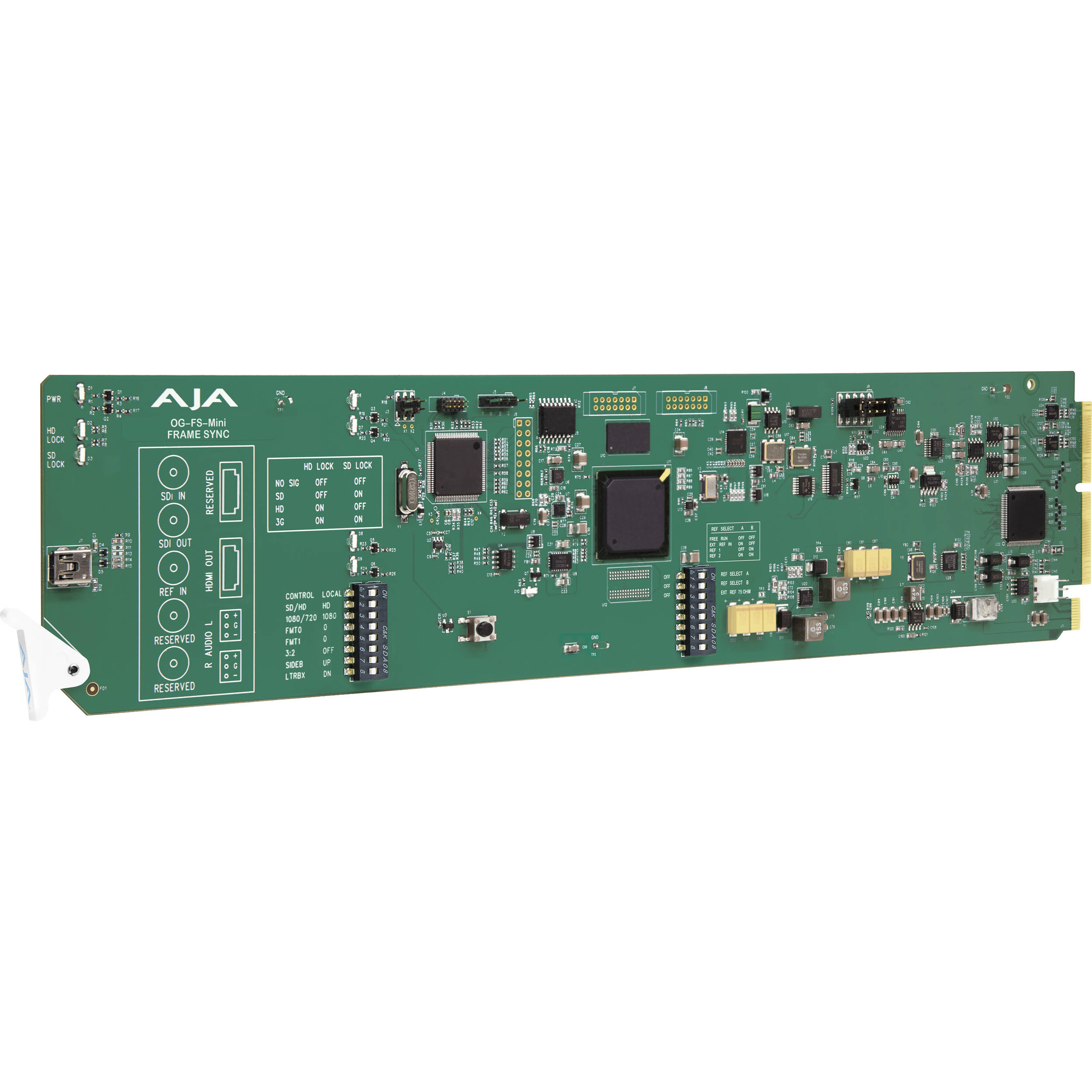

Designed for use in openGear 2 RU frames, including the AJA OG-X-FR, the AJA OG-FS-MINI 3G-SDI Frame Synchronizer enables working with untimed 3G/HD/SD-SDI signals in your broadcast environment. Mount this card onto your openGear frame—it takes two slots—to accept a variety of SDI signals into your workflow. Whether you are working with SD or HD, this card supports up to 3G-SDI signals and enables up, down, and cross conversion with 10-bit processing and a nominal delay of one frame.

Featuring one SDI input and output, as well as an HDMI monitoring output, the card supports embedded audio as well as analog audio output via two 3-pin terminal block connectors. The card automatically detects the frame size and rate (AFD) to avoid delays and glitches when working with multiple sources (requires multiple cards). Upon signal loss, the card outputs either a black frame or a still of the last clean frame. Set up and control of the card is via the downloadable DashBoard software, which is compatible with macOS, Windows, and Linux.
